Over 94% efficiency in battery mode
SunX Prime Series
Sun-Prime Series

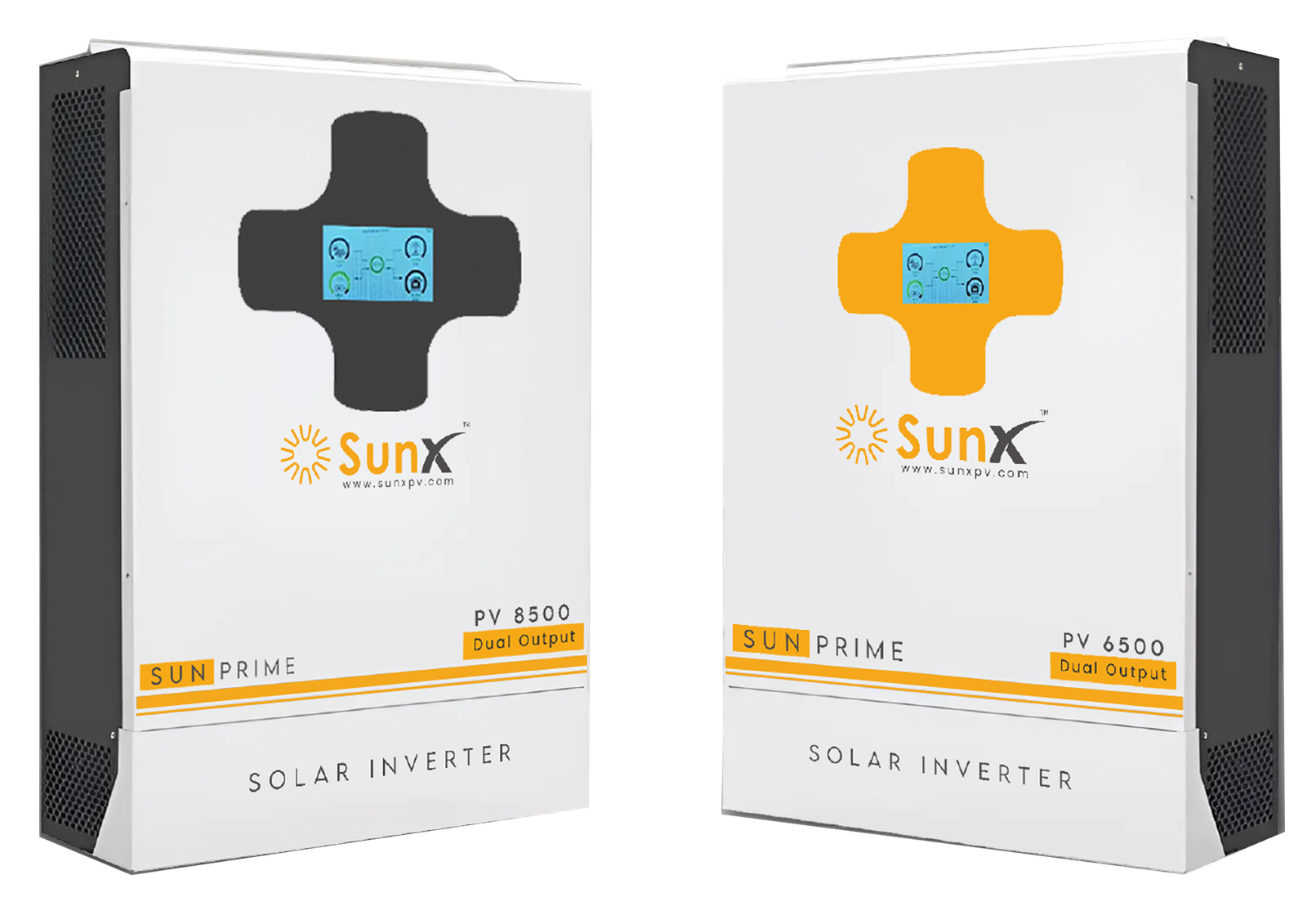

4kW | 6.2kW | 8kW | 11kW Hybrid Solar Inverter
- Advanced MPPT solar charging technology
- Pure sine wave output for clean power
- Intelligent battery management system
- Grid-tie and off-grid operation modes
- LCD display and remote monitoring
Product Advantage
Power that works intelligently
The Sun-Prime series delivers high-performance dual output hybrid inverter technology with advanced MPPT charging and seamless grid integration. Featuring over 94% efficiency in battery mode, pure sine wave output, and intelligent energy management, it is the perfect solution for modern residential and commercial energy needs.
10ms transfer time for computers
Parallel operation support
Real-time LCD monitoring
Product Parameters
Technical specifications
Select a model to compare its main power, charging, battery, and operating details.
SUNX
Sun-Prime 4kW
Dual Output Hybrid Inverter
Rated power4000 W
Peak power8000 VA
PV input power6500 W
PV voltage range60–500 VDC
Battery voltage48 VDC
Maximum charge current120 A
Output waveformPure sine wave
EfficiencyOver 94%
Dimensions495 × 312 × 125 mm
Operating temperature0°C to 40°C
